Pulsotronic波尔索
KJ5-M18MB50-DPS-V2接近开关进口,原装,上海锐誉专注为你提供德国Pulsotronic波尔索传感器产品,期待你的咨询。
德国Pulsotronic波尔索传感器订购就找上海锐誉:
联系人:于经理
TEL:021-50189957
Fax:021-51685502
QQ:2792258890
Email:rymro@sina.com
Pulsotronic波尔索产品描述:

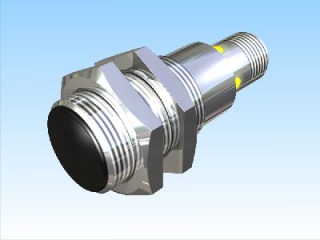

Name KJ5-M18MB50-DPS-V2
Number 08317842065
Matchcode 9984-2065
Switching distance 5 mm
Mounting shielded
Switch type N.O.
Signal Type DC PNP
Connection
Technical Spec
Operating voltage 10 - 30 VDC
Max. ripple ≤ ≤10 %
Voltage drop ≤ 2,4 V
Max. load current 200 mA
No load current ≤ 13 mA
Leakage current ≤ 10 µA
Switching frequency 800 Hz
Switching hysterese ≤ 15 %
Operating temperature von -25 ° C bis 70 ° C
Temperature drift ≤ 10 %
Repeat accuracy ≤ 10 %
Operating state No
Swiching state Yes
Digital output Yes
short-circuit proof Yes
overload protection Yes
reverse voltage protection Yes
Protection Category IP67
EMV - Level DIN EN 60947-5-2:2008
Housing Material Brass, nickel plated
material active face PCB
termination Connector M12 4pol
更多Pulsotronic波尔索传感器推荐:
pulsotronic 08310000562 KJ5-M18MB25-DPS
pulsotronic 08317842000 KJ5-M18MB35-DPS
pulsotronic 08317842100 KJ5-M18MB35-DNS
pulsotronic 08317842065 KJ5-M18MB50-DPS-V2
pulsotronic 08317842165 KJ5-M18MB50-DNS-V2
pulsotronic 08317844900 KJ8-M18MB40-DPS
pulsotronic 08317844800 KJ8-M18MB40-DNS
pulsotronic 08317844950 KJ8-M18MB50-DPS-V2
pulsotronic 08317844850 KJ8-M18MB50-DNS-V2
pulsotronic 08317842200 KJ8-M18MN35-DPS
pulsotronic 08317842300 KJ8-M18MN35-DNS
pulsotronic 08317842265 KJ8-M18MN50-DPS-V2
pulsotronic 08317842365 KJ8-M18MN50-DNS-V2
pulsotronic 08317644000 KJ5-M18MB40-DPS
pulsotronic 08317644400 KJ5-M18MB40-DPÖ
pulsotronic 08317644100 KJ5-M18MB40-DNS
pulsotronic 08317644500 KJ5-M18MB40-DNÖ
pulsotronic 08317644065 KJ5-M18MB65-DPS-V2
