上海锐誉实业有限公司

Pulsotronic波尔索

KJ8-M18MB40-DPS接近开关
上海锐誉订购

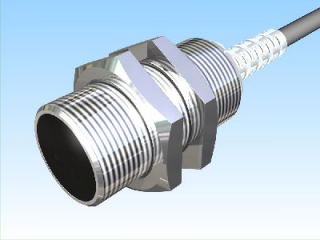

KJ8-M18MB40-DPS接近开关

型 号:KJ8-M18MB40-DPS
品 牌:Pulsotronic波尔索
价格-货期:请咨询我司商务
电 话:021-50189957
邮箱:rymro@sina.com
KJ8-M18MB40-DPS产品详细信息:

KJ8-M18MB40-DPS接近开关省心订购,价格优惠,品质保证,来自销售团队-上海锐誉实业有限公司为你服务。

德国Pulsotronic波尔索传感器订购就找上海锐誉:



联系人:于经理

TEL:021-50189957

Fax:021-51685502

QQ:2792258890

Email:rymro@sina.com



Pulsotronic波尔索产品描述:

 Name     KJ8-M18MB40-DPS
Number     08317844900
Matchcode     9984-4900
Switching distance     8 mm
Mounting     shielded
Switch type     N.O.
Signal Type     DC PNP
Connection
Technical Spec
Operating voltage     10 - 30 VDC
Max. ripple     ≤ ≤10 %
Voltage drop     ≤ 2,4 V
Max. load current     200 mA
No load current     ≤ 13 mA
Leakage current     ≤ 10 µA
Switching frequency     500 Hz
Switching hysterese     ≤ 15 %
Operating temperature     von -25 ° C bis 70 ° C
Temperature drift     ≤ 10 %
Repeat accuracy     ≤ 10 %
Operating state     No
Swiching state     Yes
Digital output     Yes
short-circuit proof     Yes
overload protection     Yes
reverse voltage protection     Yes
Protection Category     IP67
EMV - Level     DIN EN 60947-5-2:2008
Housing Material     Brass, nickel plated
material active face     PCB
termination     2m PVC 3x0,34mm²

更多Pulsotronic波尔索传感器推荐:


pulsotronic    08317624765    KJ4-M12MN60-DNÖ-V2
pulsotronic    08317626300    KJ4-M12MN60-DPA
pulsotronic    08310000019    KJ4-M12MN60-DNA
pulsotronic    08317626365    KJ4-M12MN80-DPA-V2
pulsotronic    0831xxxxxxx    KJ4-M12MN80-DNA-V2
pulsotronic    08317821000    KJ4-M12MB50-DPS
pulsotronic    08317821400    KJ4-M12MB50-DPÖ
pulsotronic    08317821100    KJ4-M12MB50-DNS
pulsotronic    08317821500    KJ4-M12MB50-DNÖ
pulsotronic    08317821050    KJ4-M12MB60-DPS-V2
pulsotronic    08317821450    KJ4-M12MB60-DPÖ-V2
pulsotronic    08317821550    KJ4-M12MB60-DNÖ-V2
pulsotronic    0831xxxxxxx    KJ4-M12MB50-DPA
pulsotronic    08310001904    KJ4-M12MB50-DNA
pulsotronic    08310000388    KJ4-M12MB60-DPA-V2
pulsotronic    0831xxxxxxx    KJ4-M12MB60-DNA-V2
pulsotronic    08317821200    KJ6-M12MN50-DPS
pulsotronic    08317821600    KJ6-M12MN50-DPÖ
pulsotronic    08317821300    KJ6-M12MN50-DNS
