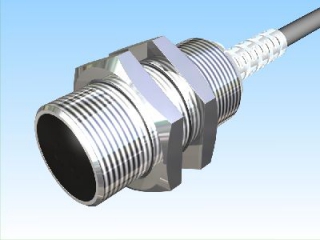

Pulsotronic波尔索KJ3-Q8MB60-DPS-V1传感器,上海锐誉为你提供,欢迎咨询产品报价
产品描述电感式传感器DC
名称KJ3-Q8MB60-DPS-V1
编号08317612064
匹配代码9861-2064
切换距离3毫米
安装屏蔽
开关类型N.O.
信号类型DC PNP
连接
尺寸61毫米x 8毫米
技术规格
工作电压10 - 30 VDC
最大纹波≤≤10%
电压降≤1V.
最大负载电流200 mA
无负载电流≤10mA
漏电流≤10μA
开关频率1000 Hz
开关滞后≤15%
工作温度为-25°C至70°C
温度漂移<10%
重复精度≤2%
运营状态No.
Swiching状态是的
数字输出是的
短路证明是的
过载保护是的
反向电压保护是的
防护等级IP67
EMC等级DIN EN 60947-5-2:2008
外壳材料黄铜,镀镍
材料活性面POM
终端连接器M8 3pol
Product Description inductive sensor DC
Name KJ3-Q8MB60-DPS-V1
Number 08317612064
Matchcode 9861-2064
Switching distance 3 mm
Mounting shielded
Switch type N.O.
Signal Type DC PNP
Connection
Dimension 61 mm x 8 mm
Technical Spec
Operating voltage 10 - 30 VDC
Max. ripple ≤ ≤10 %
Voltage drop ≤ 1 V
Max. load current 200 mA
No load current ≤ 10 mA
Leakage current ≤ 10 µA
Switching frequency 1000 Hz
Switching hysterese ≤ 15 %
Operating temperature von -25 ° C bis 70 ° C
Temperature drift < 10 %
Repeat accuracy ≤ 2 %
Operating state No
Swiching state Yes
Digital output Yes
short-circuit proof Yes
overload protection Yes
reverse voltage protection Yes
Protection Category IP67
EMV - Level DIN EN 60947-5-2:2008
Housing Material Brass, nickel plated
material active face POM
termination Connector M8 3pol
44500840102 VE-5/PG9 8401-0200
44505120200 VE-5/2m 9512-0200
44505120202 VE-5/5m 9512-0202
44505125910 V1-3/W/P/PNP/2L/2m 9512-5910
44505125912 V1-3/W/P/PNP/2L/5m 9512-5912
44505125610 V1-3/W/P/2m 9512-5610
44505125612 V1-3/W/P/5m 9512-5612
44505123810 V1-3/P/2m 9512-3810
44505123812 V1-3/P/5m 9512-3812
44505170210 V1-4/P/2m 9517-0210
44503833544 V1-4/P/5m
44505451150 V1-4/W/P/2m 9545-1150
44505134200 VS1-3/W/PG4
