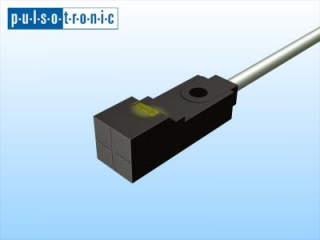

SJ1,5W-Q8KN23-DNS电感式传感器

SJ1,5W-Q8KN23-DNS电感式传感器Pulsotronic波尔索，上海锐誉为你提供

产品描述电感式传感器DC



名称SJ1,5W-Q8KN23-DNS
编号08313881539
切换距离1.5毫米
安装无屏蔽
开关类型N.O.
信号类型DC NPN
连接
尺寸23毫米x 8毫米
技术规格
工作电压10  -  30 V DC
最大纹波≤≤10％
电压降≤1.0V
最大负载电流100 mA
无负载电流≤10mA
漏电流≤10μA
开关频率500 Hz
开关滞后≤15％
工作温度为-25°C至70°C
温度漂移≤10％
重复精度≤3％
运营状态No.
Swiching状态是的
数字输出是的
短路证明是的
过载保护是的
反向电压保护是的
防护等级IP67
EMC等级DIN EN 60947-5-2：2008
端接2m PVC3x0,15mm²
外壳材料：聚碳酸酯
Product Description inductive sensor DC



Name SJ1,5W-Q8KN23-DNS
Number 08313881539
Switching distance 1,5 mm
Mounting Non shielded
Switch type  N.O.
Signal Type DC NPN
Connection
Dimension 23 mm x 8 mm
Technical Spec
Operating voltage 10 - 30 V DC
Max. ripple ≤ ≤10 %
Voltage drop ≤ 1,0 V
Max. load current 100 mA
No load current ≤ 10 mA
Leakage current ≤ 10 µA
Switching frequency 500 Hz
Switching hysterese ≤ 15 %
Operating temperature von -25 ° C bis 70 ° C
Temperature drift ≤ 10 %
Repeat accuracy ≤ 3 %
Operating state No
Swiching state Yes
Digital output Yes
short-circuit proof Yes
overload protection Yes
reverse voltage protection Yes
Protection Category IP67
EMV - Level DIN EN 60947-5-2:2008
termination 2m PVC 3x0,15mm²
Housing material: Polycarbonate
